Description of PE PPR pipe production line
The PE PPR pipe production line adopts PE high-efficiency screw, slotted barrel, and powerful water jacket cooling, which greatly improves the conveying capacity and ensures efficient extrusion; high-torque vertical structure gear box; DC drive motor. The basket composite die head suitable for polyolefin processing not only ensures the stability of high-efficiency extrusion, but also achieves the minimum stress and the highest pipe quality brought about by the low melt temperature. High-efficiency double-cavity vacuum sizing technology and spray cooling water tank are adopted to increase the yield of pipes and meet the needs of high-speed production. The multi-track tractor is adopted with uniform and stable traction. Each track is driven by an independent AC servo motor, and the drive technology controlled by a digital controller realizes accurate speed adjustment to achieve a high degree of synchronization. The cutting machine adopts high-speed and precise design, the cutting section is flat, and is equipped with a powerful chip suction device to minimize maintenance.
The Plastic Pipe Extrusion Die Head
40-160mm PPR PE Pipe Production Line Equipment List
| NO. | Items | Quantities | Remarks |
| 1 | Vacuum Loader and Hopper dryer | 1 set | 10KW heater for hopper, 3kw motor for feeder |
| 2 | SJ65 110KW single screw extruder | 1 set | 350kg/hr, barrel heating power 5 zones totally 20KW |
| 3 | SJ25 4KW | 1 set | as coextruder for color strip on pipe 10kgs/hr |
| 4 | Pipe die head | 1 set | 40-160mm, with portable framework, heating coil power 22.6KW |
| 5 | Vacuum calibration tank | 1 set | 4 vacuum pumps, 2 water tanks,rail and moving system, sus304 water pipe 4 rows inside tank |
| 6 | Spray cooling tank | 1 set | 2 vacuum pumps, 2 water tank ,sus304 water pipe 4 rows inside tank |
| 7 | Tractor Unit | 1 set | 4 claw tractor with length meter |
| 8 | Planetary cutter | 1 set | PLC control for cut of certain length |
| 9 | Stacker | 1 set | |

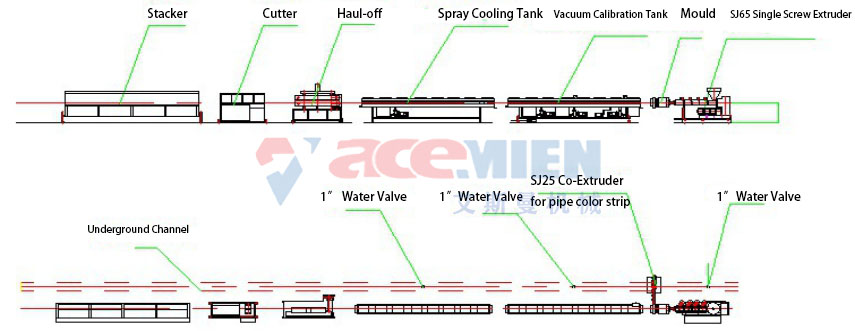

PE PP Pipe Production Engineering Chart
FAQ
Q1:What's your warranty policy?
A1:We will guarantee the machine for 12 months since the date of shipment(which means leaving from Seller's factory) or the Seller will guarantee the machine for 12 months since the date of starting installation and adjustment, whichever comes first.
Q2:What's your minimum order quantity?
A2: Min order quantity:1 set or by negotiate with each other.
Q3:What package do you use for the product?
A3: covered with plastic film, then packed in wooden box.
Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technician will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.
Q7:What are your terms of payment?
A7:We accept T/T, L/C.
Q8:What's your contact way?
A8:Kevin +86 138 6226 3862
Q9:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A9:Please click the "send" at the bottom of this page or contact our sales on Trade Manage online.
